MIL-DTL-19803G
NOTES:
1. This mounting base is designed to mate with the mounting bracket shown on MS90341.
2. Unless otherwise specified, dimensions in inches. Tolerances: Decimals + .010,
Angles + 1/2 °.

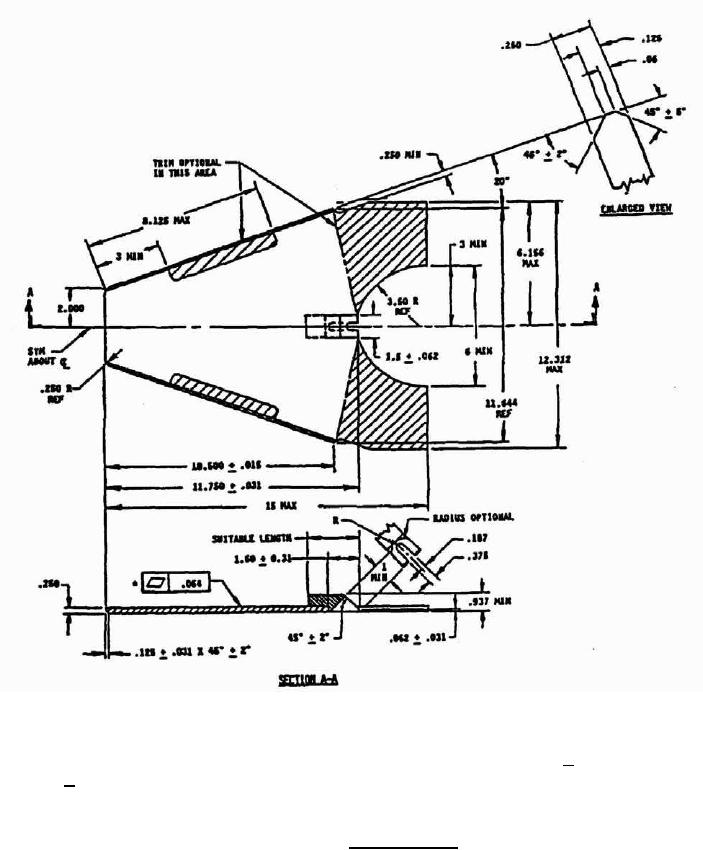

FIGURE 4. Mounting base.
27
