MIL-PRF-26392 Dummy Converters, Liquid Oxygen Indicator System, 10-Liter Cru-23/A And 25-Liter Cru-24/AThis specification covers two types of dummy converters \(electrical capacitors\) having a capacitance equivalent to an empty 10-liter and 25-liter liquid oxygen converter.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8


MIL-PRF-26392E
0.223± 0.006 DIA
4 PLACES
TOP VIEW TYPE II
(CASE NOT SHOWN)
TOP VIEW TYPE I
(CASE NOT SHOWN)
MIL-DTL-25516, B POLARITY
MIL-DTL-25516, E POLARITY
SIDE VIEW
TYPE I AND TYPE II
Notes:
1.  Unless otherwise specified, tolerances are as follows:
+ 0.030 for .XXX
+ 0.05 for .XX.
2.  Dimensions in inches.

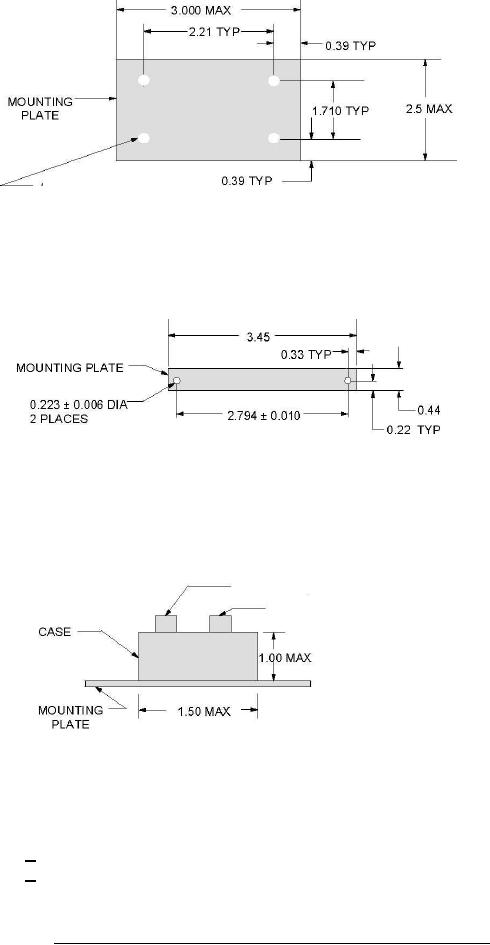

FIGURE 1. Dimensions for case and mounting plate, Type I and Type II
7
