MIL-DTL-87255A(USAF)
NOTES:
1. Dimensions are in inches.
2. MS33656 has been cancelled. Future acquisitions
for this material should refer to SAE AS4395.
3. MIL-S-7742 is Inactive for New Design.

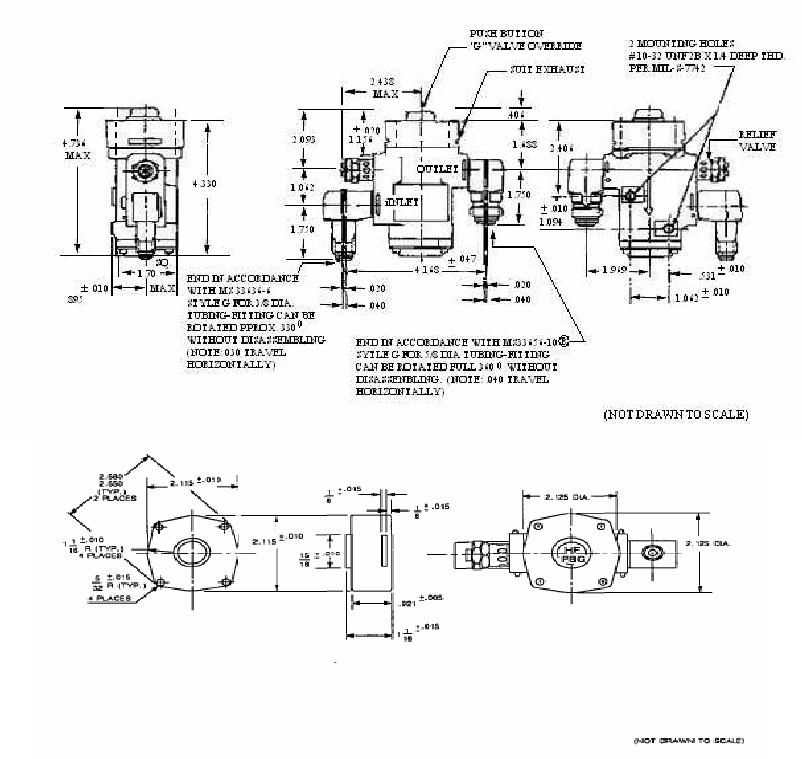

FIGURE 2. Aircraft interface dimensions for VAU-45(V)2/A.
7
