MIL-DTL-87255A(USAF)
NOTES:
1. Dimensions are in inches.
2. MS33656 and MS33658 have been cancelled.
Future acquisitions for this material should refer to
SAE AS4395 and SAE AS5132, respectively.
3. MIL-S-7742 is Inactive for New Design.

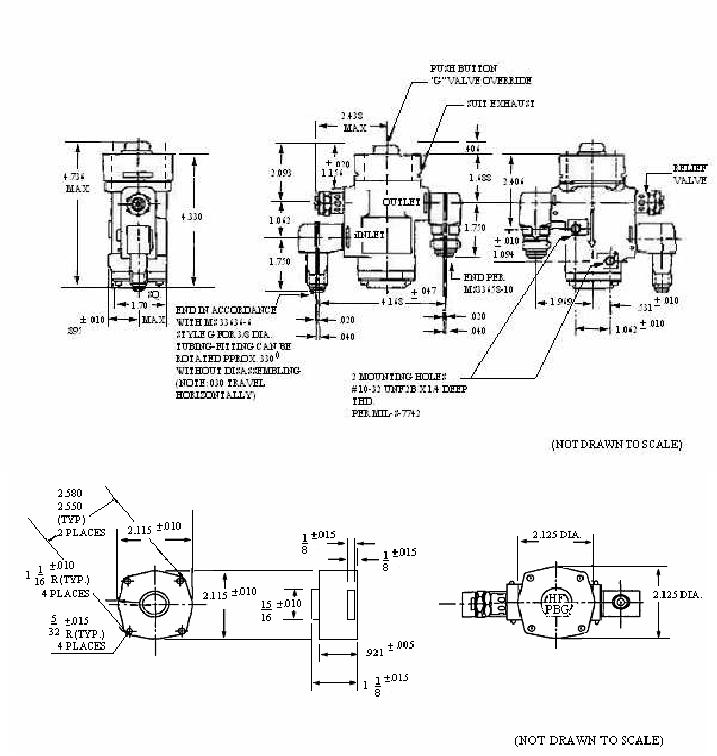

FIGURE 3. Aircraft interface dimensions for VAU-45(V)-3/A.
8
