MIL-DTL-87255 Valves, Pressure, Anti-G Suit, High FlowThis specification covers a high-flow, pressure regulating valve for inflating anti-G suits and providing a sense line signal for a g-compensated oxygen regulator \(if applicable\). It also includes details of inlet and outlet fittings required to interface the valve to specific aircraft.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18


. .
MIL-DTL-87255A(USAF)

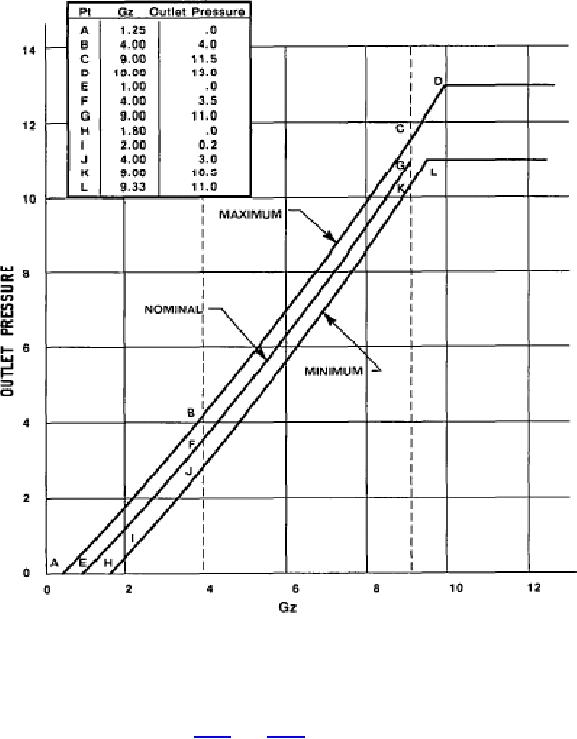

FIGURE 4. Anti-g valve outlet pressure vs Gz.
3.5.4  Anti-chatter.
The valve shall not chatter (see 4.5.5 and 6.4.2).
3.5.5
Outlet pressure response
3.5.5.1  Response time.
When the acceleration force is being applied by a centrifuge or an aircraft, the outlet pressure
shall be in accordance with table I (see figure 4) within 2 seconds after the application of the
force. When the acceleration force is being decreased, the pressure shall be in accordance
with table I (see figure 4) within 5 seconds after decreasing the force. Additionally, the outlet
pressure shall change in a smooth continuous manner without oscillations or step responses.
